Product Overview

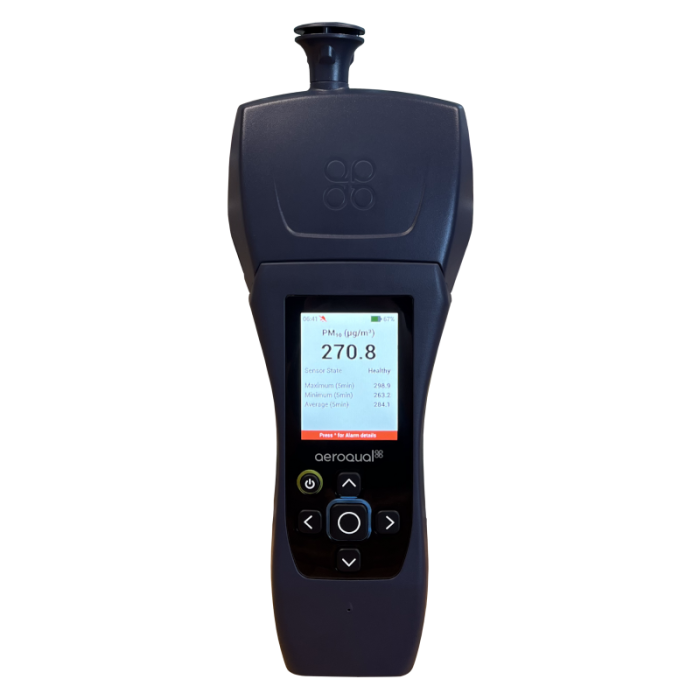

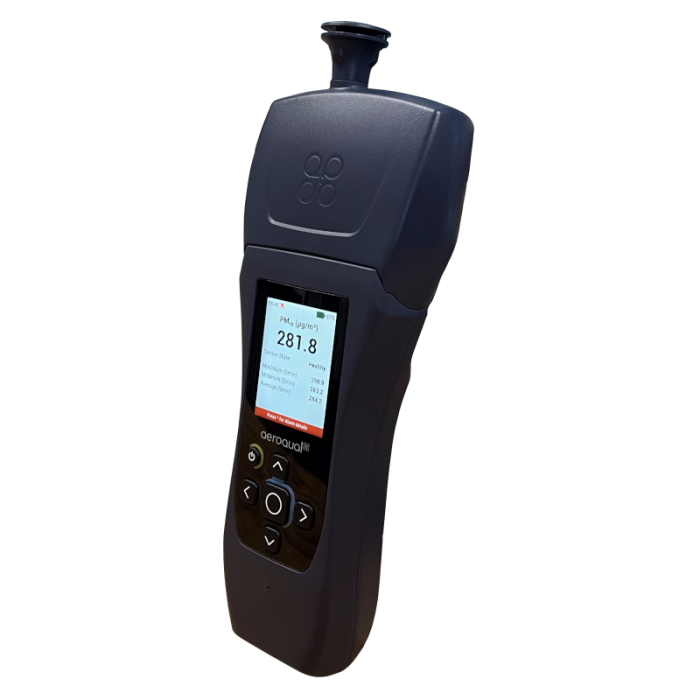

Aeroqual Ranger Monitor

The Aeroqual Ranger is a cloud-connected portable monitoring solution for industrial and occupational hygienists and environmental health and safety professionals. Used by innovative industrials, environmental consultants and more, Ranger offers a cutting-edge solution to some of the most urgent pain points facing air quality monitoring today.

A “swappable” sensor head design allows users to measure up to 28 common indoor and outdoor pollutants, removing and replacing sensors in seconds.

Because of this swappability, Ozone Solutions can send you a freshly calibrated sensor head directly. This way, you can easily swap your old head for the new, calibrated sensor head, reducing the pain and hassle of calibration significantly!

The Ranger (Also called the Ranger | Dust) comes with a required Ranger Cloud subscription. All data is available in real-time and is backed up into the Ranger Cloud when WiFi is available. After the first year, the Ranger Cloud subscription will need to be renewed; the Ranger Cloud Subscription is $600/yr.

The Aeroqual Ranger was designed with their new PMX Particulate Matter sensor in mind. The PMX sensor is capable of simultaneously monitoring PM1,PM2.5, PM4, PM10, TSP, Relative Humidity, and Temperature. The Ranger also supports all of the S-300 and S-500 replacement sensors and can easily swap sensor heads. Combining this with the real-time data logging with data backups sent to a dedicated cloud, the Ranger | Dust really is an ideal handheld sensor anywhere you go.

Range Sampling Power Physical Data Storage Operating Range Sensor Calibration Measurement Frequency Parameters
Concentration: 0-30,000 μg/m3 Resolution: 0.1 μg/m3 Omni-directional: Active Minimum detectable 50% eff - 0.3 μm Lithium-ion: 21 hr (USB-C cable included) Weight: 600g, 22 oz Onboard: 5 years Cloud: Unlimited Temperature: 0° - 50°C | 32° - 122°F Zero 1 per second Simultaneous: PM1, PM2.5, PM4, PM10, TSP, Relative Humidity, Temperature
https://cdn11.bigcommerce.com/s-wku95yte6g/product_images/uploaded_images/aeroqual-ranger-monitor.png?t=1654791034&_gl=1*dqr56f*_ga*MTE5MzQxNjg1MS4xNjUyMTIyMTEx*_ga_WS2VZYPC6G*MTY1NDc5MDk5MS4xMjQuMS4xNjU0NzkxMDE2LjM1
What's Included:
Ranger Monitor Base
Calibration Certificate
USB-C Power Cord
USB-C Power Charger
Ranger Cloud Software
Who/What Is It For?
Industrial and Occupational Hygiene Monitoring
Personal Exposure Monitoring
Indoor and Outdoor Air Quality Assessments
Environmental Impact Assessments
Ambient Air Quality Monitoring
Engineering Control Assessments
FAQ
  1. Does the Ranger support other types of wireless connectivity?
    Ranger | Dust has a built-in Wi-Fi connection. Where Wi-Fi is not available, Cellular connectivity is achievable through the pairing with a mobile hotspot router (not included). Please note that logging continues normally without a wireless connection and that Ranger | Dust will back up all logged data on Ranger Cloud whenever an internet connection becomes available.
  1. Can I calibrate the sensors in the field?
    Yes. You can perform a Zero or Gain adjustment in the field. You may also measure the flow of the sensor head's fan. The flow can be verified by removing the inlet and fitting a flow sensor.
  1. Does the Ranger do active sampling?
    Yes, the Ranger | Dust with simultaneous multi fraction particulate matter sensor incorporates a fan for active sampling. Additional gas sensor heads also incorporate a fan.
  1. How long does it take to turn on the Ranger?
    Ranger | Dust only takes a few seconds to turn on, and you may sample and log data immediately upon startup. However, Aeroqual recommends a 3-minute warmup period upon startup and exchanging sensor heads.



For more information about the new Aeroqual Ranger, check out Aeroqual's website or take a look at the Ranger Spec Sheet.

Warranty Information

One Year Limited Warranty

California Regulatory Warning

Example Image
Use in unoccupied spaces only.
Health hazard warning: emits ozone.

This product is not CARB Certified (Ozone Emissions for Air Cleaners).
Product Disclaimer: Does not meet California air cleaner regulation requirements; cannot be shipped to California.
